Best available data on Ne lamp spectra useful for wavelength calibration in the OH(6-2) and O2(0-1) airglow range

The following data are generally consistent with line positions we used earlier, by V. Kaufman and B. Edlén ("Reference wavelengths from atomic spectra in the range 15 Å to 25000 Å", J.Phys.Chem.Ref.Data 3, 825, 1974), but supercede them in precision.

Intensities and air wavelengths are from C.J. Sansonetti, M.M. Blackwell, and E.B. Saloman ("High-resolution observations of the infrared spectrum of neutral neon", Journal of Research of the National Institute of Standards and Technology, May-June 2004). Intensities can only be considered as a coarse guide, because they depend on special discharge lamp conditions. (See also NIST Atomic Spectra Database)

Vacuum wavelengths are derived therefrom via formula (2) by E.R. Peck and K. Reeder ("Dispersion of air", J.Opt.Soc.Am. 62(8), 958-962, 1972). Vacuum wavelengths are most practical for airglow spectrometer calibration, because they directly relate to energy term differences from computed band spectra.

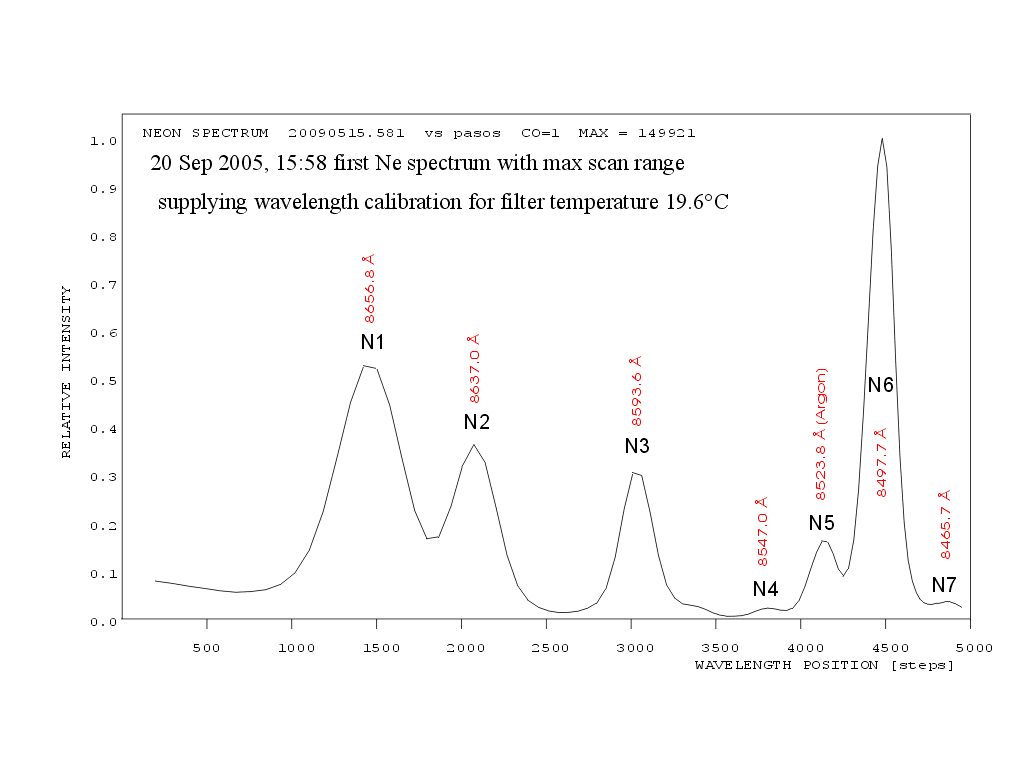

Intensity     air wavel  vac wavel [Å]

  2700        8417.1597  8419.4727

 26000 S      8418.4269  8420.7402

  3700        8463.3565  8465.6820  N7

  1300        8484.4432  8486.7744

 69000 S      8495.3595  8497.6937  N6

  1600        8544.6953  8547.0428  N4

  2900        8571.3528  8573.7075

  1600        8582.9031  8585.2609

 41000 S      8591.2585  8593.6186  N3

 35000 S      8634.6471  8637.0189  N2

   740        8635.3177  8637.6897

  6000        8647.0412  8649.4164

 64000 S      8654.3828  8656.7600  N1

  7600        8655.5220  8657.8995

 13000 S      8679.4936  8681.8776

 15000 S      8681.9208  8684.3054

  2900        8704.1122  8706.5028

   160        8767.536   8769.9438
